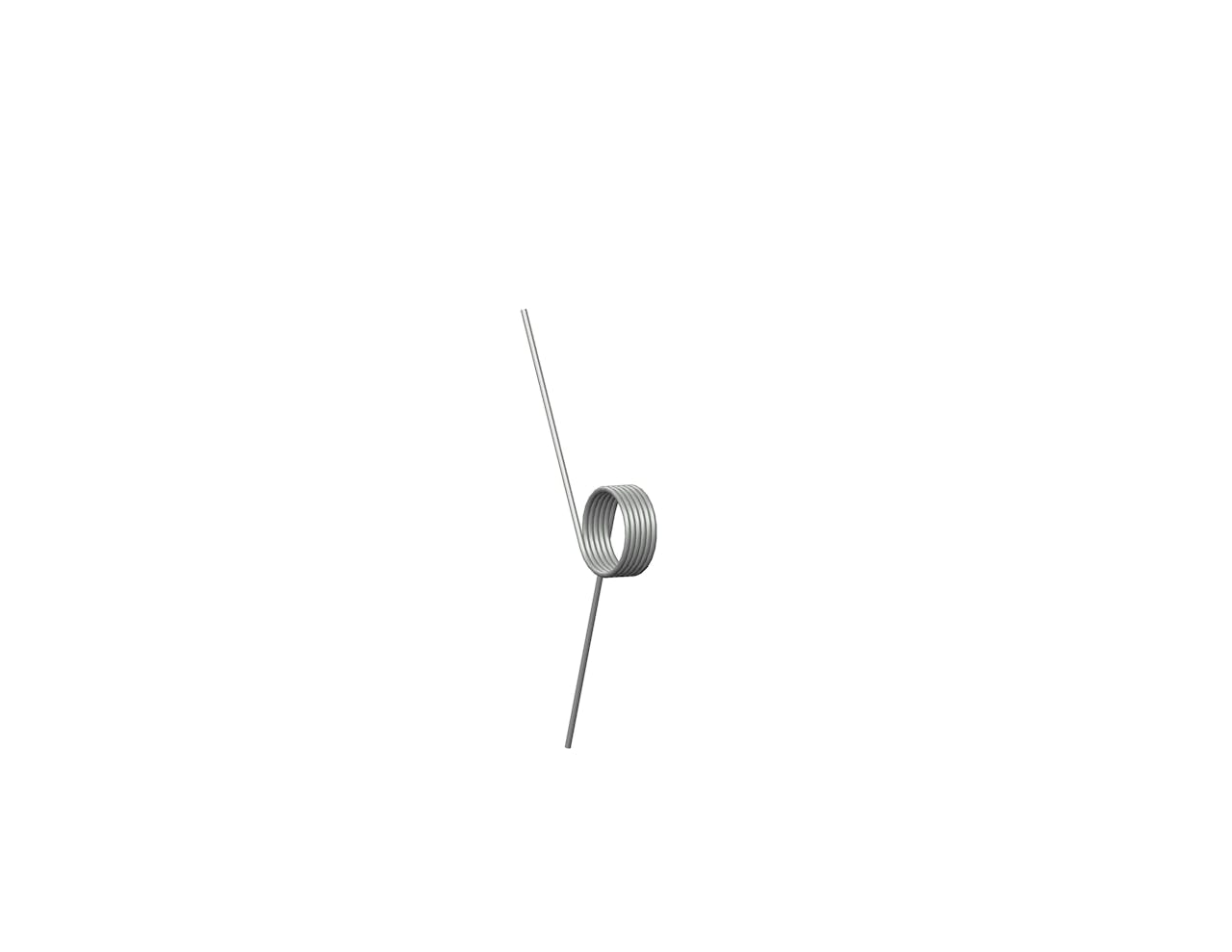

TO-5083LCS - Music Wire Torsion Springs
The TO-5083LCS is a torsion spring manufactured by Century Spring. It is made from high-quality Music Wire material, ensuring durability and reliable performance. This torsion spring has an inside diameter of 0.312 inches and an outside diameter of 0.36 inches. With a leg length of 1 inch and a total of 5.875 coils, it provides the necessary rotational force for various applications. The TO-5083LCS has a mandrel diameter of 0.24 inches, allowing for smooth operation. It has a maximum torque of 0.34 inch-pounds and a rotational rate of 0.0013 inch-pounds per degree. With its precise measurements and sturdy construction, the TO-5083LCS is an excellent choice for torsion spring applications.
At Century Spring, we understand the importance of fast shipping and maintaining a significant stock inventory. We take pride in offering prompt delivery of our high-quality springs, including the TO-5083LCS. With our extensive stock, customers can rely on us to have the springs they need readily available. Additionally, all our springs are proudly made in the United States. This ensures that our customers receive products that meet the highest standards of quality and craftsmanship. Trust Century Spring for all your torsion spring needs, and experience our commitment to superior products and excellent service.
Label | Value |
---|---|
Angle Between Legs | 225 deg |
Body Length | 0.18 in |
Brand | Century Spring |
Finish | None |
Inside Diameter | 0.312 in |
Leg Length | 1 in |
Mandrel Diameter | 0.24 in |
Material | Music Wire |
Max Deflection (deg) (suggested) | 254 |
Max Torque (suggested) | 0.34 lbs/in |
Measurement Units | Standard |
Outside Diameter | 0.36 in |
Rate | 0.0013 lbf-in/deg |
SKU | TO-5083LCS |
Total Coils | 5.875 |
Wind Direction | Left |
Wire Diameter | 0.024 in |
Label | Value |
---|---|
Angle Between Legs | 225 deg |
Body Length | 4.57 mm |
Brand | Century Spring |
Finish | None |
Inside Diameter | 7.92 mm |
Leg Length | 25.4 mm |
Mandrel Diameter | 6.1 mm |
Material | Music Wire |
Max Deflection (deg) (suggested) | 254 |
Max Torque (suggested) | 0.06 N-mm |
Measurement Units | Standard |
Outside Diameter | 9.14 mm |
Rate | 0.15 N-mm/deg |
SKU | TO-5083LCS |
Total Coils | 5.88 |
Wind Direction | Left |
Wire Diameter | 0.61 mm |
