TO-5037RCS - Music Wire Torsion Springs

Inventory Status
In-stock
Estimated Lead Time
In-stock parts: usually ships in 12-24 hours

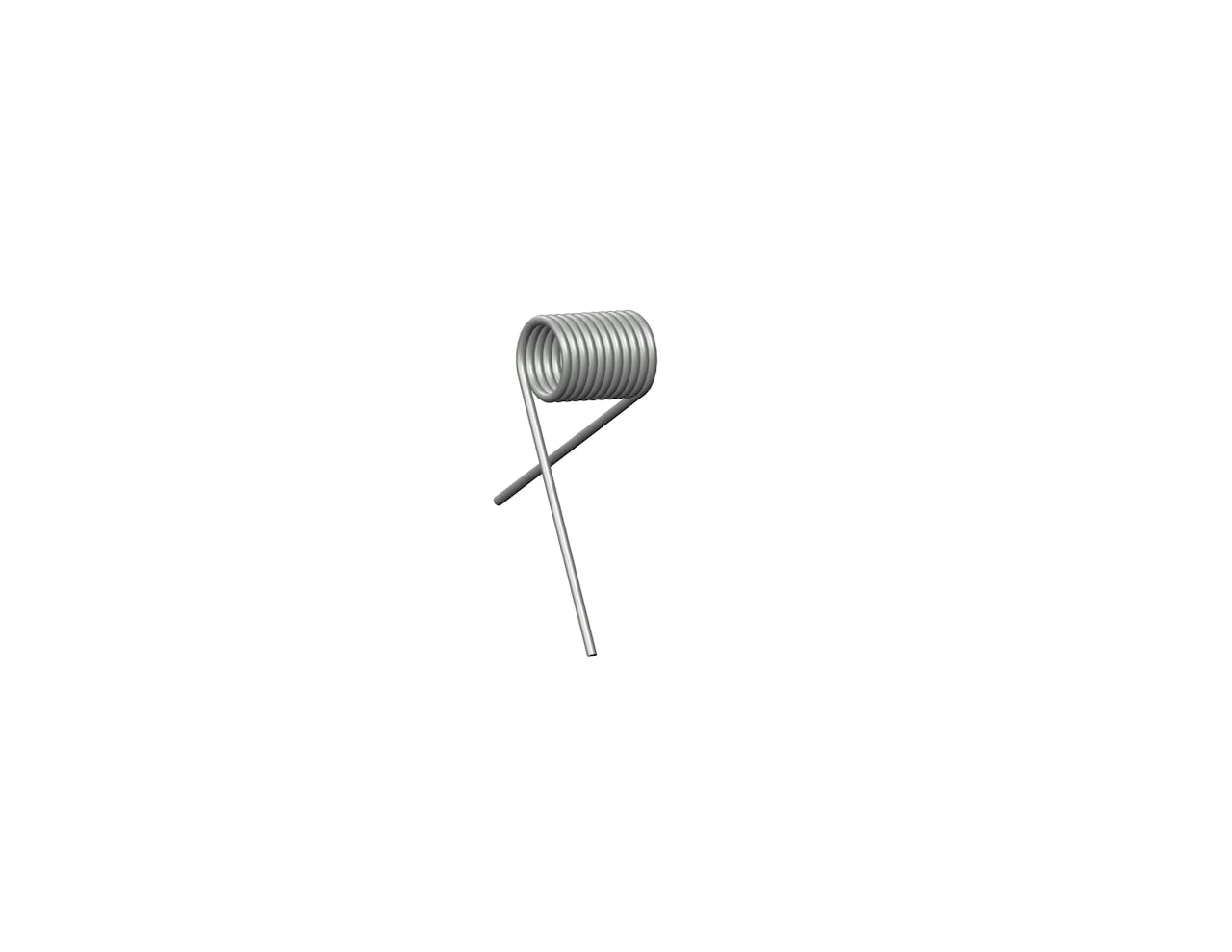

The TO-5037RCS is a torsion spring manufactured by Century Spring. This spring is made from high-quality music wire and does not have a specific finish. It has an inside diameter of 0.17 inch and an outside diameter of 0.22 inches. The leg length measures 0.75 inches, and the body length is 0.32 inches. The spring has a mandrel diameter of 0.14 inch and a wire diameter of 0.025 inches. With a total of 10.75 coils, it has an angle between legs of 270 degrees. The maximum torque it can handle is 0.35 inch-pounds, and the maximum rotational deflection is 222 degrees. This torsion spring is suitable for various applications and is available for purchase from Century Spring.

At Century Spring, we take pride in offering fast shipping and maintaining a significant stock inventory. Our products, including the TO-5037RCS torsion spring, are proudly made in the United States. With our efficient shipping process and ample supply, we ensure that customers can quickly receive the high-quality springs they need for their projects. Trust Century Spring for all your spring requirements.

Unit System
View Spec Sheet
Specs (in standard)
Label Value
Angle Between Legs 270 deg
Body Length 0.32 in
Brand Century Spring
Finish None
Inside Diameter 0.17 in
Leg Length 0.75 in
Mandrel Diameter 0.14 in
Material Music Wire
Max Deflection (deg) (suggested) 222
Max Torque (suggested) 0.35 lbs/in
Measurement Units Standard
Outside Diameter 0.22 in
Rate 0.0016 lbf-in/deg
SKU TO-5037RCS
Total Coils 10.75
Wind Direction Right
Wire Diameter 0.025 in
Specs (in metric)
Label Value
Angle Between Legs 270 deg
Body Length 8.13 mm
Brand Century Spring
Finish None
Inside Diameter 4.32 mm
Leg Length 19.05 mm
Mandrel Diameter 3.56 mm
Material Music Wire
Max Deflection (deg) (suggested) 222
Max Torque (suggested) 0.06 N-mm
Measurement Units Standard
Outside Diameter 5.59 mm
Rate 0.18 N-mm/deg
SKU TO-5037RCS
Total Coils 10.75
Wind Direction Right
Wire Diameter 0.64 mm
