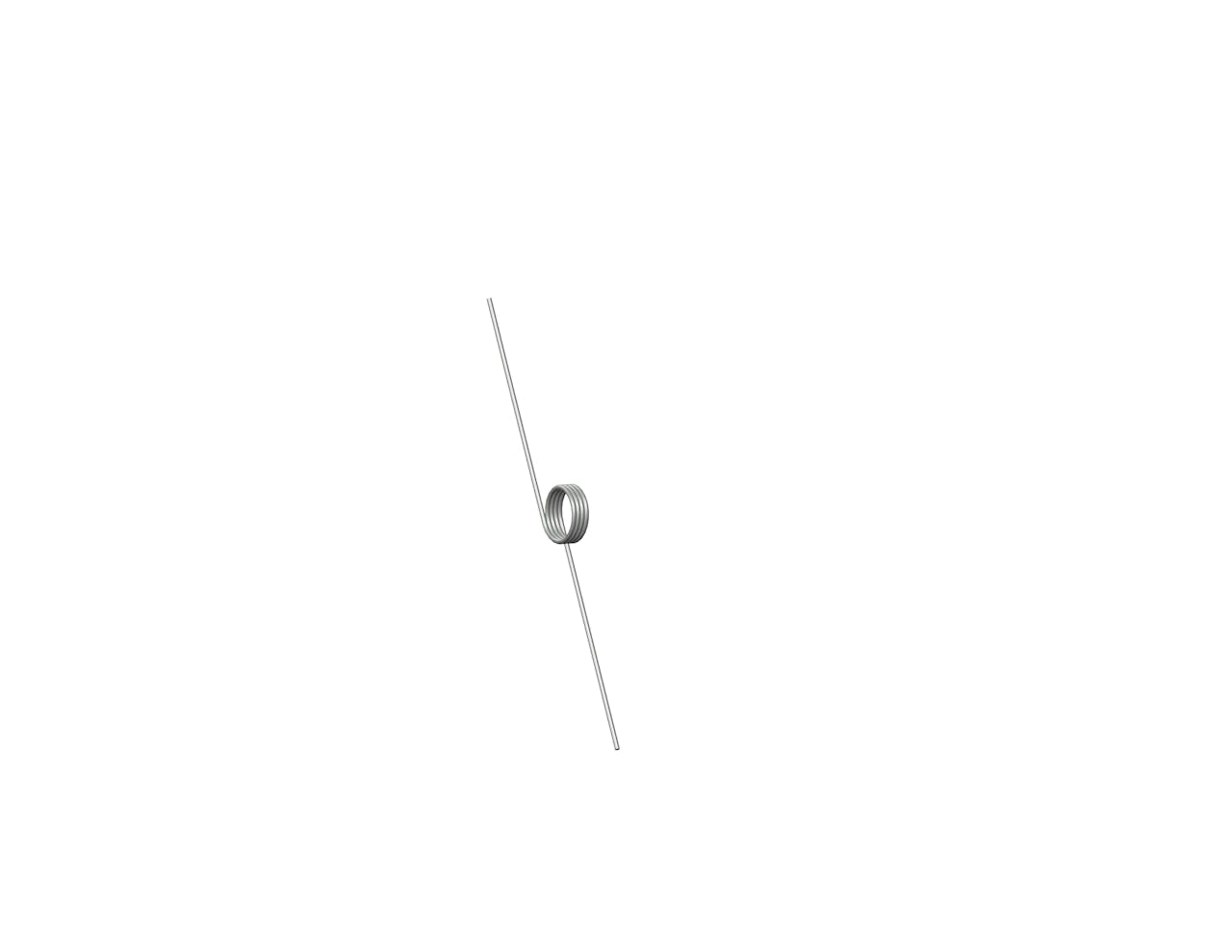

TO-5020LCS - Music Wire Torsion Springs
The TO-5020LCS is a torsion spring manufactured by Century Spring. This spring is made from high-quality music wire and does not have a finish. It features an inside diameter of 0.154 inch and an outside diameter of 0.184 inches. The leg length measures 0.75 inches, and the body length is 0.08 inches. With an angle between legs of 180 degrees, this spring provides reliable rotational deflection. The TO-5020LCS has a mandrel diameter of 0.12 inch and a wire diameter of 0.015 inches. With a total of 4 coils, it offers a rate rotational of 0.0006 inch-pounds per degree. This versatile torsion spring is suitable for various applications.
At Century Spring, we take pride in our fast shipping and extensive stock inventory. We understand the urgency of your projects, which is why we ensure prompt delivery of our products. Additionally, all of our springs, including the TO-5020LCS, are proudly made in the United States. Our commitment to quality and customer satisfaction is evident in every aspect of our business. Trust Century Spring for reliable springs and efficient service.
Label | Value |
---|---|
Angle Between Legs | 180 deg |
Body Length | 0.08 in |
Brand | Century Spring |
Finish | None |
Inside Diameter | 0.154 in |
Leg Length | 0.75 in |
Mandrel Diameter | 0.12 in |
Material | Music Wire |
Max Deflection (deg) (suggested) | 147 |
Max Torque (suggested) | 0.082 lbs/in |
Measurement Units | Standard |
Outside Diameter | 0.184 in |
Rate | 0.0006 lbf-in/deg |
SKU | TO-5020LCS |
Total Coils | 4 |
Wind Direction | Left |
Wire Diameter | 0.015 in |
Label | Value |
---|---|
Angle Between Legs | 180 deg |
Body Length | 2.03 mm |
Brand | Century Spring |
Finish | None |
Inside Diameter | 3.91 mm |
Leg Length | 19.05 mm |
Mandrel Diameter | 3.05 mm |
Material | Music Wire |
Max Deflection (deg) (suggested) | 147 |
Max Torque (suggested) | 0.01 N-mm |
Measurement Units | Standard |
Outside Diameter | 4.67 mm |
Rate | 0.07 N-mm/deg |
SKU | TO-5020LCS |
Total Coils | 4 |
Wind Direction | Left |
Wire Diameter | 0.38 mm |
