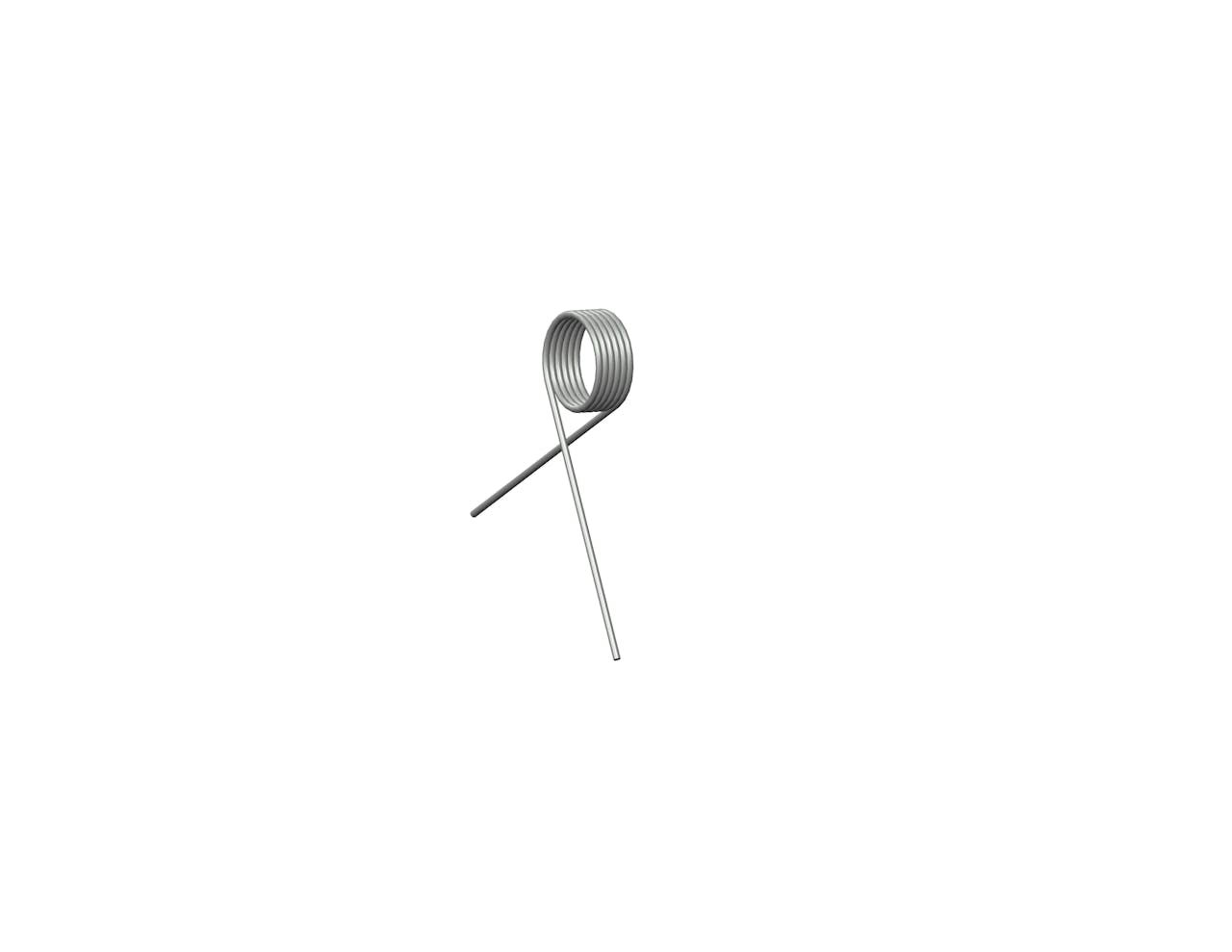

TO-5014RCS - Music Wire Torsion Springs
The TO-5014RCS is a torsion spring manufactured by Century Spring. This spring is made from Music Wire and has a non-finished surface. It has a wire diameter of 0.012 inches, an outside diameter of 0.171 inches, and a body length of 0.09 inches. The spring has a total of 5.75 coils and a right wind direction. With an angle between legs of 270 degrees, this torsion spring offers a maximum torque of 0.049 lbs/inch. It is suitable for various applications requiring rotational deflection and is designed to provide reliable performance.
At Century Spring, we take pride in our fast shipping and substantial stock inventory. Our products, including the TO-5014RCS, are made in the United States. With our efficient shipping process and ample supply, we ensure that customers receive their springs promptly. Whether you need torsion springs or other types of springs, Century Spring is here to meet your needs.
| Label | Value |
|---|---|
| Angle Between Legs | 270 deg |
| Body Length | 0.09 in |
| Brand | Century Spring |
| Finish | None |
| Inside Diameter | 0.147 in |
| Leg Length | 0.5 in |
| Mandrel Diameter | 0.11 in |
| Material | Music Wire |
| Max Deflection (deg) (suggested) | 263 |
| Max Torque (suggested) | 0.049 lbs/in |
| Measurement Units | Standard |
| Outside Diameter | 0.171 in |
| Rate | 0.0002 lbf-in/deg |
| SKU | TO-5014RCS |
| Total Coils | 5.75 |
| Wind Direction | Right |
| Wire Diameter | 0.012 in |
| Label | Value |
|---|---|
| Angle Between Legs | 270 deg |
| Body Length | 2.29 mm |
| Brand | Century Spring |
| Finish | None |
| Inside Diameter | 3.73 mm |
| Leg Length | 12.7 mm |
| Mandrel Diameter | 2.79 mm |
| Material | Music Wire |
| Max Deflection (deg) (suggested) | 263 |
| Max Torque (suggested) | 0.01 N-mm |
| Measurement Units | Standard |
| Outside Diameter | 4.34 mm |
| Rate | 0.02 N-mm/deg |
| SKU | TO-5014RCS |
| Total Coils | 5.75 |
| Wind Direction | Right |
| Wire Diameter | 0.3 mm |
